XCTF_Reverse_elrond32

,

XCTF Reverse板块中的elrond32题目，个人解法

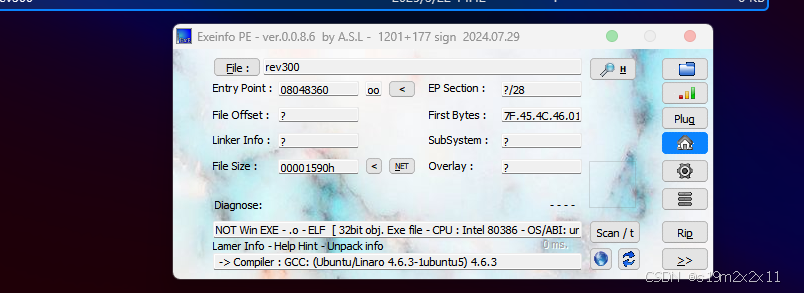

ExeinfoPE查看文件信息，32bit，那就用32位的IDA分析

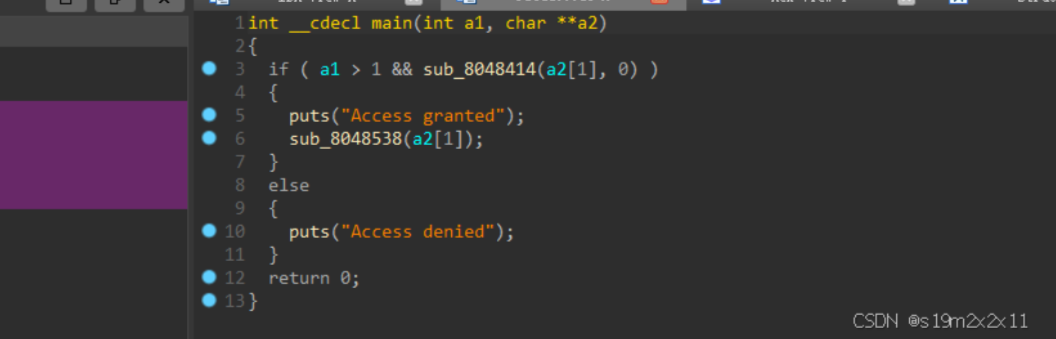

进入Main函数:

猜测 if ( a1 > 1 && sub_8048414(a2[1], 0)) 条件满足，即输出flag函数 sub_8048538(a2[1]);

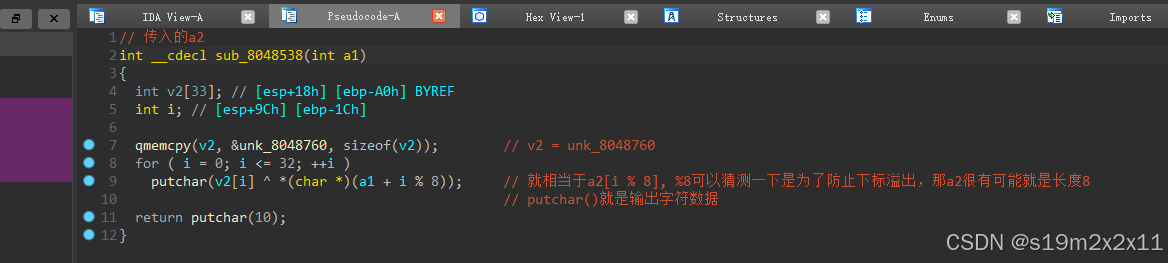

sub_8048538():

分析可得输出flag部分代码为(C):

1
2
3
for (int i = 0; i <= 32; ++i ) {
    flag[i] = v2[i] ^ a2[i % 8];
}

unk_8048760 (v2):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

.rodata:08048760 unk_8048760     db  0Fh                 ; DATA XREF: sub_8048538+12↑o
.rodata:08048761                 db    0
.rodata:08048762                 db    0
.rodata:08048763                 db    0
.rodata:08048764                 db  1Fh
.rodata:08048765                 db    0
.rodata:08048766                 db    0
.rodata:08048767                 db    0
.rodata:08048768                 db    4
.rodata:08048769                 db    0
.rodata:0804876A                 db    0
.rodata:0804876B                 db    0
.rodata:0804876C                 db    9
.rodata:0804876D                 db    0
.rodata:0804876E                 db    0
.rodata:0804876F                 db    0
.rodata:08048770                 db  1Ch
.rodata:08048771                 db    0
.rodata:08048772                 db    0
.rodata:08048773                 db    0
.rodata:08048774                 db  12h
.rodata:08048775                 db    0
.rodata:08048776                 db    0
.rodata:08048777                 db    0
.rodata:08048778                 db  42h ; B
.rodata:08048779                 db    0
.rodata:0804877A                 db    0
.rodata:0804877B                 db    0
.rodata:0804877C                 db    9
.rodata:0804877D                 db    0
.rodata:0804877E                 db    0
.rodata:0804877F                 db    0
.rodata:08048780                 db  0Ch
.rodata:08048781                 db    0
.rodata:08048782                 db    0
.rodata:08048783                 db    0
.rodata:08048784                 db  44h ; D
.rodata:08048785                 db    0
.rodata:08048786                 db    0
.rodata:08048787                 db    0
.rodata:08048788                 db  0Dh
.rodata:08048789                 db    0
.rodata:0804878A                 db    0
.rodata:0804878B                 db    0
.rodata:0804878C                 db    7
.rodata:0804878D                 db    0
.rodata:0804878E                 db    0
.rodata:0804878F                 db    0
.rodata:08048790                 db    9
.rodata:08048791                 db    0
.rodata:08048792                 db    0
.rodata:08048793                 db    0
.rodata:08048794                 db    6
.rodata:08048795                 db    0
.rodata:08048796                 db    0
.rodata:08048797                 db    0
.rodata:08048798                 db  2Dh ; -
.rodata:08048799                 db    0
.rodata:0804879A                 db    0
.rodata:0804879B                 db    0
.rodata:0804879C                 db  37h ; 7
.rodata:0804879D                 db    0
.rodata:0804879E                 db    0
.rodata:0804879F                 db    0
.rodata:080487A0                 db  59h ; Y
.rodata:080487A1                 db    0
.rodata:080487A2                 db    0
.rodata:080487A3                 db    0
.rodata:080487A4                 db  1Eh
.rodata:080487A5                 db    0
.rodata:080487A6                 db    0
.rodata:080487A7                 db    0
.rodata:080487A8                 db    0
.rodata:080487A9                 db    0
.rodata:080487AA                 db    0
.rodata:080487AB                 db    0
.rodata:080487AC                 db  59h ; Y
.rodata:080487AD                 db    0
.rodata:080487AE                 db    0
.rodata:080487AF                 db    0
.rodata:080487B0                 db  0Fh
.rodata:080487B1                 db    0
.rodata:080487B2                 db    0
.rodata:080487B3                 db    0
.rodata:080487B4                 db    8
.rodata:080487B5                 db    0
.rodata:080487B6                 db    0
.rodata:080487B7                 db    0
.rodata:080487B8                 db  1Ch
.rodata:080487B9                 db    0
.rodata:080487BA                 db    0
.rodata:080487BB                 db    0
.rodata:080487BC                 db  23h ; #
.rodata:080487BD                 db    0
.rodata:080487BE                 db    0
.rodata:080487BF                 db    0
.rodata:080487C0                 db  36h ; 6
.rodata:080487C1                 db    0
.rodata:080487C2                 db    0
.rodata:080487C3                 db    0
.rodata:080487C4                 db    7
.rodata:080487C5                 db    0
.rodata:080487C6                 db    0
.rodata:080487C7                 db    0
.rodata:080487C8                 db  55h ; U
.rodata:080487C9                 db    0
.rodata:080487CA                 db    0
.rodata:080487CB                 db    0
.rodata:080487CC                 db    2
.rodata:080487CD                 db    0
.rodata:080487CE                 db    0
.rodata:080487CF                 db    0
.rodata:080487D0                 db  0Ch
.rodata:080487D1                 db    0
.rodata:080487D2                 db    0
.rodata:080487D3                 db    0
.rodata:080487D4                 db    8
.rodata:080487D5                 db    0
.rodata:080487D6                 db    0
.rodata:080487D7                 db    0
.rodata:080487D8                 db  41h ; A
.rodata:080487D9                 db    0
.rodata:080487DA                 db    0
.rodata:080487DB                 db    0
.rodata:080487DC                 db  0Ah
.rodata:080487DD                 db    0
.rodata:080487DE                 db    0
.rodata:080487DF                 db    0
.rodata:080487E0                 db  14h
.rodata:080487E1                 db    0
.rodata:080487E2                 db    0

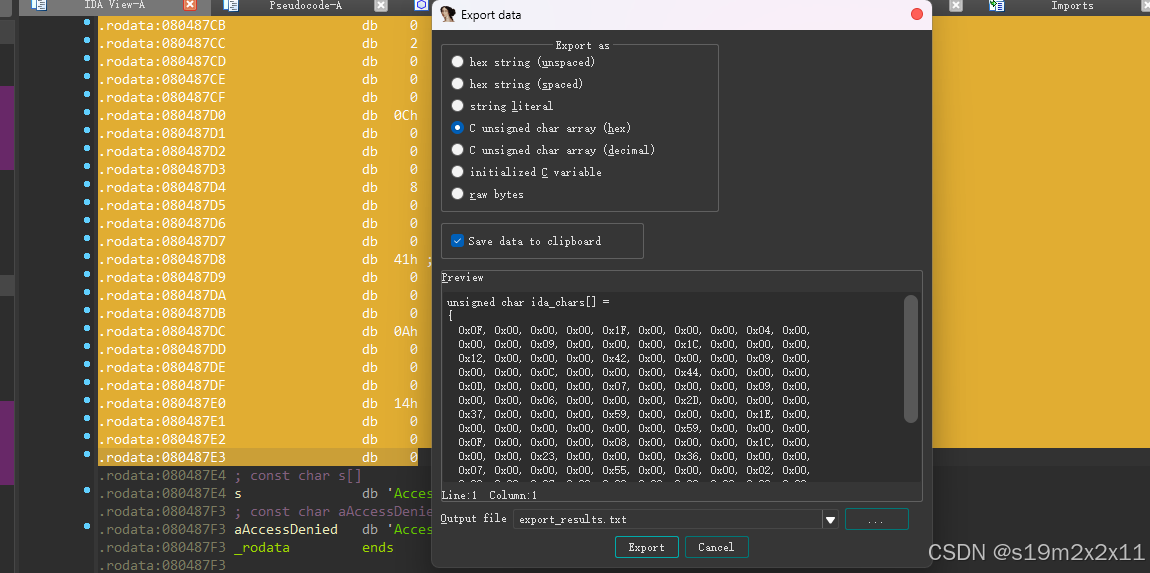

这里选中数据后Shift + E 发现有很多的0x00

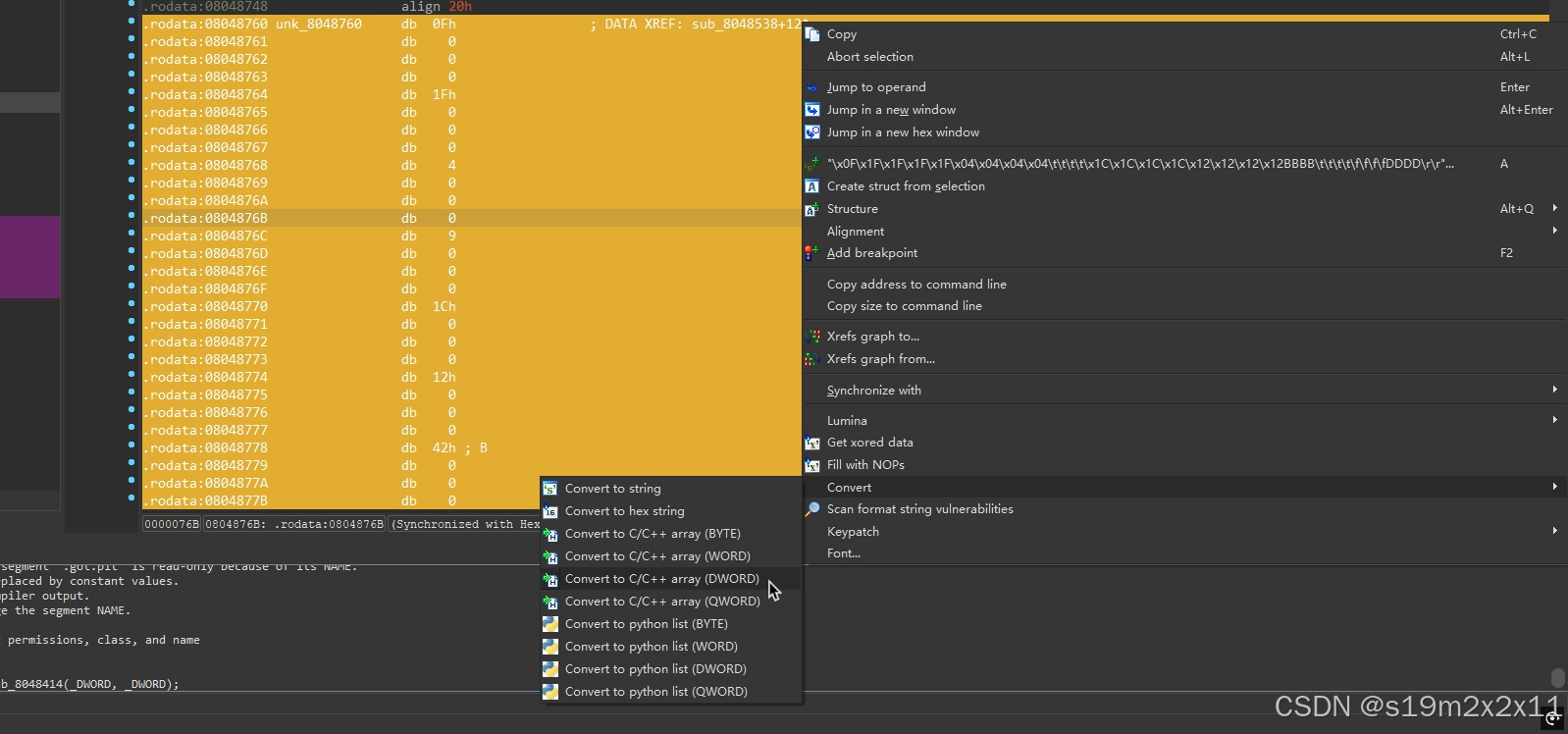

使用LazyIDA提取数据，转换为DWORD (Double Word, 双字节, 占四BYTE，就可以把我们要的数据后边的0x00去除，避免出现一些问题) (选取数据，右键，Convert，Convert to C/C++ array (DWORD) )
1
2
3
4
5
6
7
unsigned int unk_8048760[33] = {
    0x0000000F, 0x0000001F, 0x00000004, 0x00000009, 0x0000001C, 0x00000012, 0x00000042, 0x00000009,
    0x0000000C, 0x00000044, 0x0000000D, 0x00000007, 0x00000009, 0x00000006, 0x0000002D, 0x00000037,
    0x00000059, 0x0000001E, 0x00000000, 0x00000059, 0x0000000F, 0x00000008, 0x0000001C, 0x00000023,
    0x00000036, 0x00000007, 0x00000055, 0x00000002, 0x0000000C, 0x00000008, 0x00000041, 0x0000000A,
    0x00000014
};

回到Main函数继续分析sub_8048414(a2[1], 0):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
int __cdecl sub_8048414(_BYTE *a1, int a2)
{
  int result; // eax

  switch ( a2 )
  {
    case 0:
      if ( *a1 == 105 )
        goto LABEL_19;
      result = 0;
      break;
    case 1:
      if ( *a1 == 101 )
        goto LABEL_19;
      result = 0;
      break;
    case 3:
      if ( *a1 == 110 )
        goto LABEL_19;
      result = 0;
      break;
    case 4:
      if ( *a1 == 100 )
        goto LABEL_19;
      result = 0;
      break;
    case 5:
      if ( *a1 == 97 )
        goto LABEL_19;
      result = 0;
      break;
    case 6:
      if ( *a1 == 103 )
        goto LABEL_19;
      result = 0;
      break;
    case 7:
      if ( *a1 == 115 )
        goto LABEL_19;
      result = 0;
      break;
    case 9:
      if ( *a1 == 114 )
LABEL_19:
        result = sub_8048414(a1 + 1, 7 * (a2 + 1) % 11);
      else
        result = 0;
      break;
    default:
      result = 1;
      break;
  }
  return result;
}

看到是一个很长的控制流， **_BYTE a1, int a2* 就是带入的 a2[1], 0
当 a2 = 0 时，进入 case0，a1被赋值为105，进入LABEL_19，调用了sub_8048414 我们所在的函数，所以判断这就是一个递归
每次完成赋值goto到 LABEL_19 会对a2重新运算 7 * (a2 + 1) % 11 ，写一个脚本跑一下 (当然也可以手算)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
#include <stdio.h>
#include <string.h>

int main() {
    unsigned int a1[] = {105, 101, 0, 110, 100, 97, 103, 115, 0, 114};
    int a2 = 0;
    for (int i = 0; i < 8; i++)
    {
        printf("%d,", a1[a2]);
        a2 = 7 * (a2 + 1) % 11;
    }
    return 0;
}

// 105,115,101,110,103,97,114,100,

编写解密脚本(C)：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#include <stdio.h>
#include <string.h>

int main() {
    unsigned int a2[] = {105, 115, 101, 110, 103, 97, 114, 100};
    unsigned int v2[33] = {
        0x0000000F, 0x0000001F, 0x00000004, 0x00000009, 0x0000001C, 0x00000012, 0x00000042, 0x00000009,
        0x0000000C, 0x00000044, 0x0000000D, 0x00000007, 0x00000009, 0x00000006, 0x0000002D, 0x00000037,
        0x00000059, 0x0000001E, 0x00000000, 0x00000059, 0x0000000F, 0x00000008, 0x0000001C, 0x00000023,
        0x00000036, 0x00000007, 0x00000055, 0x00000002, 0x0000000C, 0x00000008, 0x00000041, 0x0000000A,
        0x00000014
    };
    char flag[50] = {0};

    for (int i = 0; i <= 32; ++i ) {
        flag[i] = v2[i] ^ a2[i % 8];
    }

    printf("%s",flag);
    return 0;
}

// flag{s0me7hing_S0me7hinG_t0lki3n}

写的不好，有不对的地方请指出，谢谢 ><
